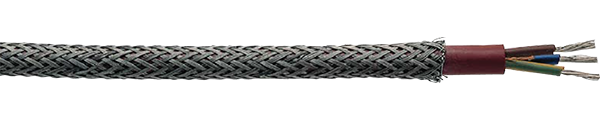

| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 19 AWG (≈ 23/32)/5c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4546 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 19 AWG (≈ 23/32)/6c |
| Color Code | Black #'d plus ground |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4549 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 19 AWG (≈ 23/32)/7c |
| Color Code | Black #'d plus ground |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4552 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 18 AWG (≈ 30/32)/2c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4555 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 18 AWG (≈ 30/32)/3c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4558 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 18 AWG (≈ 30/32)/4c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4561 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 18 AWG (≈ 30/32)/5c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4564 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 18 AWG (≈ 30/32)/6c |
| Color Code | Black #'d plus ground |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4567 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 18 AWG (≈ 30/32)/7c |
| Color Code | Black #'d plus ground |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4570 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 16 AWG (≈ 27-29/30)/2c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4573 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 16 AWG (≈ 27-29/30)/3c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4576 |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | SC 600 HDTRS |
| Gauge/c | 16 AWG (≈ 27-29/30)/4c |
| Color Code | HD 308 |
| Shielding | Steel Braid Shield |
| Jacket | Reddish Brown Besilen (silicone) (RAL 3016) |
| Approvals | UR AWM, CSA AWM, CE, EAC, RoHS |
| Voltage | 600 |
| Temperature Range | -40°C to +180°C; +200°C (2000h); +250°C (short-term use); UL/CSA: up to +150°C Style 4579 |
| View PDF For Complete Technical Specifications |
