Filter Cord Grip Selection

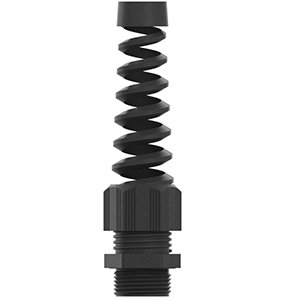

FMB-12L
Category: Spiral Cable Glands
| Thread | M12X1.5 |
| Series | CG 200 Metric |
| Material | Polyamide 6 |
| Color | Black |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, cCSAus, VDE, DNV-GL, CE |
| Clamping Range | 0.118 - 0.256 in. (3.0 - 6.5 mm) |
| Thread Diameter | 0.472 in (12 mm) |
| Wrenching Flats | 0.591 in (15 mm) |
| Thread Length | 0.591 in (15 mm) |
| Height (in) | 2.244 |
| Locknut P/N | LMB-12 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Polyamide Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
