Filter Cord Grip Selection

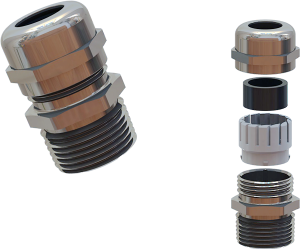

MMS-50L
Category: Metal Cable Glands
| Thread | M50X1.5 |
| Series | CG 300 Metric |
| Description | with longer threads |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, VDE, DNV-GL, CE |
| Clamping Range | 0.866 - 1.260 in. (22.0 - 32.0 mm) |
| Thread Diameter | 1.969 in. (50 mm) |
| Wrenching Flats | 1.969 in. (50 mm) |
| Thread Length | 0.591 in. (15 mm) |
| Height (in) | 1.89 |
| Height (mm) | 48.006 |
| Locknut P/N | LMM-50 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
