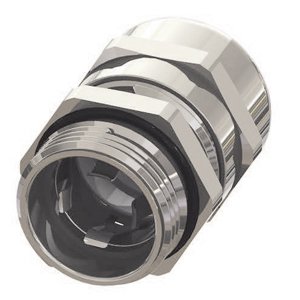

EN4-2
Category: EMC Grounding Glands
| Thread | NPT 2" |
| Series | CG EMC-4 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | DNV-GL, CE, RoHS |
| Clamping Range | 1.339 - 1.732 in. (34.0 - 44.0 mm) |
| Shield Diameter (in) | 1.181 - 1.575 |
| Shield Diameter (mm) | 30.0 - 40.0 |
| Thread Diameter | 2.374 in. (60.3 mm) |
| Wrenching Flats | 2.519 in. (68 mm) |
| Thread Length | 0.866 in. (22 mm) |
| Height (in) | 2.815 |
| Height (mm) | 71.5 |
| Locknut P/N | LN-2 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-4 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
| In Stock | Buy Now |
