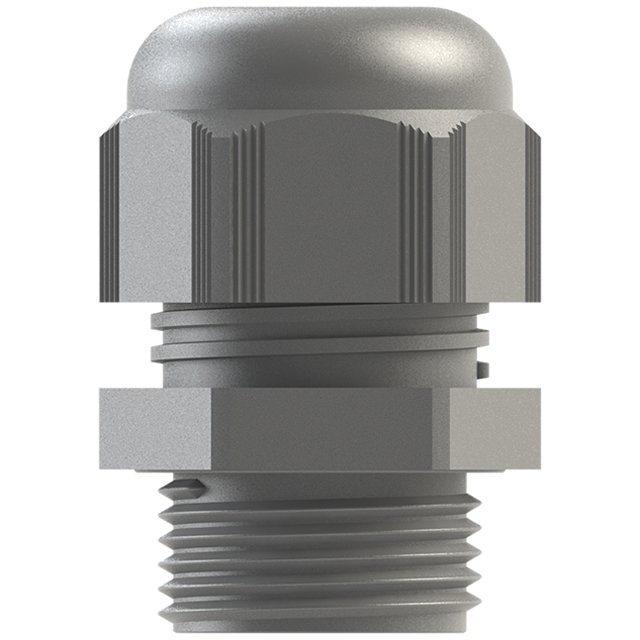

PPG-29R
Category: Plastic Cable Glands
| Thread | PG 29 |
| Series | CG 100 PG |
| Description | with reducer bushing |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, cCSAus, DNV-GL, CE |
| Clamping Range | 0.472 - 0.788 in. (12.0 - 20.0 mm) |
| Thread Diameter | 1.457 in (37 mm) |
| Wrenching Flats | 1.654 in (42 mm) |
| Thread Length | 0.433 in (11 mm) |
| Height (in) | 1.614 |
| Locknut P/N | LPG-29 (Included) |
| Torque Values | Torque Values for Polyamide Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
| In Stock | Buy Now |
