MPF-13
Category: Metal Flex Cable Glands
| Thread | PG 13.5 |
| Series | CG 325 PG |

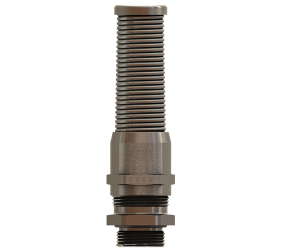

| Description | CG 325 metal flex gland with spiral top for bending support, PG 13 |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Clamping Range | 0.236 - 0.472 in. (6.0 - 12.0 mm) |
| Thread Diameter | 0.803 in. (20.4 mm) |
| Wrenching Flats | 0.866 in. (22 mm) Cap/ 0.866 in. (22 mm) Body |
| Thread Length | 0.256 in. (6.5 mm) |
| Height (in) | 3.386 |
| Height (mm) | 86 |
| Locknut P/N | LPM-11 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
