EXM2-25-TL9
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M25x1.5 |
| Series | EX EMC-2 Metric EX e |

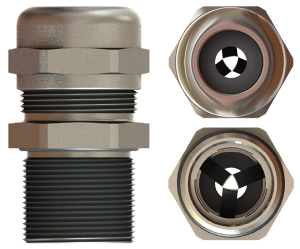

| Description | EX e EMC-2 Nickel plated brass EX e E grounding and explosion proof cable gland, M25 |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.394 - 0.709 in. (10.0 - 18.0 mm) |
| Thread Diameter | 0.984 in. (25 mm) |
| Wrenching Flats | 0.630 in. (16 mm) Cap / 1.102 in. (28 mm) Body |
| Thread Length | 0.354 in. (9 mm) |
| Height (in) | 1.260 |
| Height (mm) | 32.0 |
