All Cable Types
| Type | Reeling, Lift and Specialty Cables |

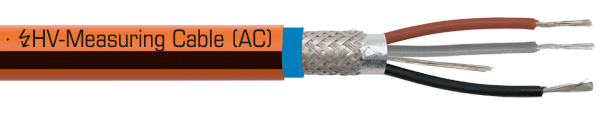

| Series | HV Measuring Cable (AC) |
| Gauge/c | 24/3c |
| Color Code | Black, red |
| Shielding | Foil Shield, Tinned Braid Shield |
| Jacket | Orange with black stripe PUR |
| Approvals | CE, RoHS |
| Voltage | 1000 |
| Temperature Range | -50° to +125°C; (+150°C- 3000 hours) |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |

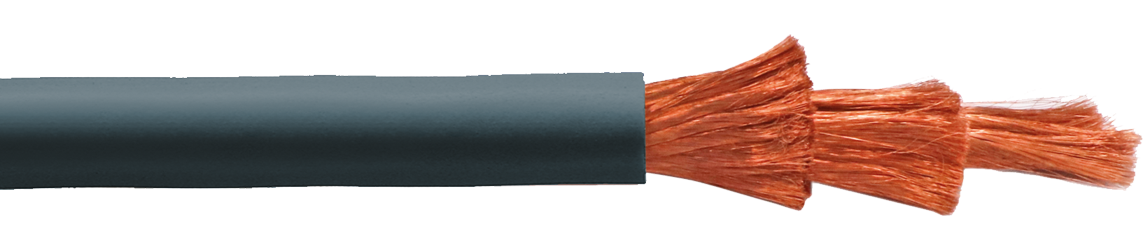

| Series | R 107 |
| Gauge/c | 550 MCM/1c |
| Jacket | Slate Gray Besilen (silicone) |
| Approvals | RoHS |
| Voltage | 3000 |
| Temperature Range | -50°C to +180°C |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | HV Measuring Cable (AC) |
| Gauge/c | 22/3c |
| Color Code | Black, red |
| Shielding | Foil Shield, Tinned Braid Shield |
| Jacket | Orange with black stripe PUR |
| Approvals | CE, RoHS |
| Voltage | 1000 |
| Temperature Range | -50° to +125°C; (+150°C- 3000 hours) |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |

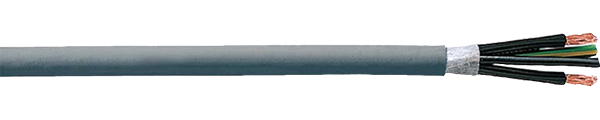

| Series | S 180 HT |
| Gauge/c | 14 AWG (≈ 140/34)/6c |
| Color Code | Black #'d plus ground |
| Jacket | Gray Special Besilen (Silicone) similar to RAL 7000 |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -25°C to +180°C (+200°C- short time use) |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | HV Measuring Cable (AC) |
| Gauge/c | 20/3c |
| Color Code | Black, red |
| Shielding | Foil Shield, Tinned Braid Shield |
| Jacket | Orange with black stripe PUR |
| Approvals | CE, RoHS |
| Voltage | 1000 |
| Temperature Range | -50° to +125°C; (+150°C- 3000 hours) |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | S 180 HT |
| Gauge/c | 14 AWG (≈ 140/34)/12c |
| Color Code | Black #'d plus ground |
| Jacket | Gray Special Besilen (Silicone) similar to RAL 7000 |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -25°C to +180°C (+200°C- short time use) |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | HV Measuring Cable (AC) |
| Gauge/c | 18/3c |
| Color Code | Black, red |
| Shielding | Foil Shield, Tinned Braid Shield |
| Jacket | Orange with black stripe PUR |
| Approvals | CE, RoHS |
| Voltage | 1000 |
| Temperature Range | -50° to +125°C; (+150°C- 3000 hours) |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | S 180 HT |
| Gauge/c | 14 AWG (≈ 140/34)/20c |
| Color Code | Black #'d plus ground |
| Jacket | Gray Special Besilen (Silicone) similar to RAL 7000 |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -25°C to +180°C (+200°C- short time use) |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | HV Measuring Cable (AC) |
| Gauge/c | 16/3c |
| Color Code | Black, red |
| Shielding | Foil Shield, Tinned Braid Shield |
| Jacket | Orange with black stripe PUR |
| Approvals | CE, RoHS |
| Voltage | 1000 |
| Temperature Range | -50° to +125°C; (+150°C- 3000 hours) |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | S 180 HT |
| Gauge/c | 12 AWG (≈ 224/34)/12c |
| Color Code | Black #'d plus ground |
| Jacket | Gray Special Besilen (Silicone) similar to RAL 7000 |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -25°C to +180°C (+200°C- short time use) |
| View PDF For Complete Technical Specifications |
| Type | Reeling, Lift and Specialty Cables |
| Series | B 110 C Sense |
| Gauge/c | 24/2c |
| Color Code | Black, red |
| Shielding | Foil Shield, Tinned Braid Shield |
| Jacket | Orange Besilen (silicone) |
| Approvals | cURus, RoHS |
| Voltage | 3000 |
| Temperature Range | -40°C to +180°C; short-term use: +250°C; cURus: up to +150°C |
| View PDF For Complete Technical Specifications |
| Type | High Temperature Cables |
| Series | S 180 HT |
| Gauge/c | 10 AWG (≈ 186/32)/3c |
| Color Code | Black #'d plus ground |
| Jacket | Gray Special Besilen (Silicone) similar to RAL 7000 |
| Approvals | CE, EAC, RoHS |
| Voltage | 1000 |
| Temperature Range | -25°C to +180°C (+200°C- short time use) |
| View PDF For Complete Technical Specifications |
