Compensating and Extension Cables
Type | Compensating and Extension Cables |

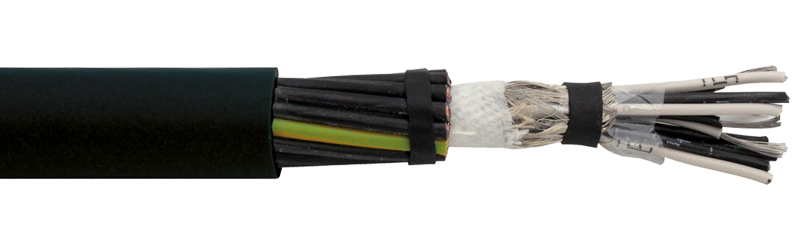

Series | Hybrid thermocouple cable JX |
Gauge/c | (20 AWG/2 pr JX) C + 16 AWG/5c |
Color Code |
black and white acc. to IEC 60584 type JX black with white numbers,: 1 to -4, -8, -12 ,-16 and a green/yellow ground (control conductors) |
Jacket | Black PVC |
Approvals | CE, RoHS |
Voltage | 500 |
Temperature Range | -25° to +70°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | Hybrid thermocouple cable JX |
Gauge/c | (20 AWG/4 pr JX) C + 16 AWG/9c |
Color Code |
black and white acc. to IEC 60584 type JX black with white numbers,: 1 to -4, -8, -12 ,-16 and a green/yellow ground (control conductors) |
Jacket | Black PVC |
Approvals | CE, RoHS |
Voltage | 500 |
Temperature Range | -25° to +70°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | Hybrid thermocouple cable JX |
Gauge/c | (20 AWG/6 pr JX) C + 16 AWG/13c |
Color Code |
black and white acc. to IEC 60584 type JX black with white numbers,: 1 to -4, -8, -12 ,-16 and a green/yellow ground (control conductors) |
Jacket | Black PVC |
Approvals | CE, RoHS |
Voltage | 500 |
Temperature Range | -25° to +70°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | Hybrid thermocouple cable JX |
Gauge/c | (20 AWG/8 pr JX) C + 16AWG/17c |
Color Code |
black and white acc. to IEC 60584 type JX black with white numbers,: 1 to -4, -8, -12 ,-16 and a green/yellow ground (control conductors) |
Jacket | Black PVC |
Approvals | CE, RoHS |
Voltage | 500 |
Temperature Range | -25° to +70°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 TW |
Gauge/c | 26 AWG (7-strand)/2c |
Color Code | red, white |
Jacket | Black FEP |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -90° to +180°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 TW |
Gauge/c | 26 AWG (7-strand)/3c |
Color Code | red, red, white |
Jacket | Black FEP |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -90° to +180°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 TW |
Gauge/c | 26 AWG (7-strand)/4c |
Color Code | red, red, white, white |
Jacket | Black FEP |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -90° to +180°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 C TW |
Gauge/c | 26 AWG (7-strand)/2c |
Color Code | red, white |
Shielding | Tinned Braid Shield |
Jacket | Black FEP |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -90° to +180°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 C TW |
Gauge/c | 26 AWG (7-strand)/3c |
Color Code | red, red, white |
Shielding | Tinned Braid Shield |
Jacket | Black FEP |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -90° to +180°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 C TW |
Gauge/c | 26 AWG (7-strand)/4c |
Color Code | red, red, white, white |
Shielding | Tinned Braid Shield |
Jacket | Black FEP |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -90° to +180°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 flex |
Gauge/c | 26 AWG (7-strand)/2c |
Color Code | red, white |
Jacket | Red Besilen (silicone) |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -40° to +180°C |
View PDF For Complete Technical Specifications |
Type | Compensating and Extension Cables |
Series | RTD Sensor Cable 180 flex |
Gauge/c | 26 AWG (7-strand)/3c |
Color Code | red, red, white |
Jacket | Red Besilen® (silicone) |
Approvals | RoHS |
Voltage | 48 |
Temperature Range | -40° to +180°C |
View PDF For Complete Technical Specifications |
