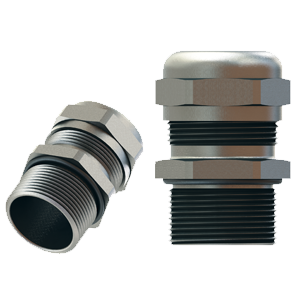

SP3-21
Category: Stainless Steel Cable Glands
| Thread | PG 21 |
| Series | CG 350 PG |
| Material | Stainless Steel 303 |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, DNV-GL, CE, RoHS |
| Clamping Range | 0.512 - 0.709 in. (13.0 - 18.0 mm) |
| Thread Diameter | 1.114 in (28.3 mm) |
| Wrenching Flats | 1.181 in (30 mm) |
| Thread Length | 0.283 in (7.2 mm) |
| Height (in) | 1.378 |
| Height (mm) | 35 |
| Locknut P/N | LPM-21 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
