Filter Cord Grip Selection

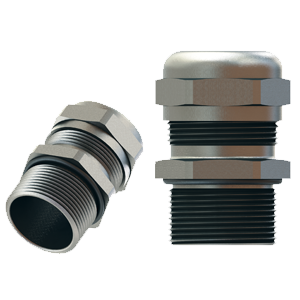

SN3-1 1/2
Category: Stainless Steel Cable Glands
| Thread | NPT 1 1/2" |
| Series | CG 350 NPT |
| Material | Stainless Steel 303 |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | DNV-GL, CE, RoHS |
| Clamping Range | 1.181 - 1.496 in. (30.0 - 38.0 mm) |
| Thread Diameter | 1.902 in (48.3 mm) |
| Wrenching Flats | 2.362 in (60 mm) |
| Thread Length | 1.024 in (26 mm) |
| Height (in) | 1.969 |
| Height (mm) | 50 |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
