Selecting a Grounding Gland: CG EMC2 vs. CG EMC-4
EMC-2
- → Optimal grounding of shielded cable
- → One direction installation
- → Impact resistant
- → Suitable for the highest demands of today's technology
- → Easy installation
- → Easy handling
- → High corrosion resistance
- → Water tight
- → Strain relief
EMC-4
- → Optimal grounding of shielded cable
- → Bi-directional installation
- → Impact resistant
- → Free radial and axial movement of the cable without any damage to the braid
- → Easy installation
- → Large contact surface of the finters allowing low contact resistance
- → High contact performance under vibrating conditions
- → Water tight
- → Strain relief
Filter Cord Grip Selection

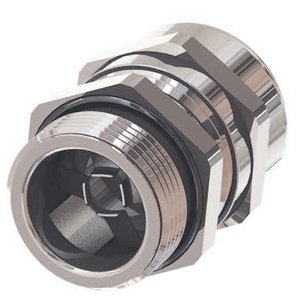

EP2-13L
Category: EMC Grounding Glands
| Thread | PG 13.5 |
| Series | CG EMC-2 EMC Grounding Gland |
| Description | with longer thread |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | DNV-GL, CE, RoHS |
| Clamping Range | 0.236 - 0.473 in. (6.0 - 12.0 mm) |
| Shield Diameter (in) | 0.197 |
| Shield Diameter (mm) | 5 |
| Thread Diameter | 0.803 in. (20.4 mm) |
| Wrenching Flats | 0.866 in. (22 mm) |
| Thread Length | 0.394 in. (10 mm) |
| Height (in) | 0.965 |
| Height (mm) | 24.5 |
| Locknut P/N | LPE-13 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-2 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
