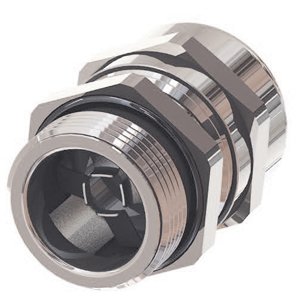

EM2-40
Category: EMC Grounding Glands
| Thread | M40x1.5 |
| Series | CG EMC-2 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, VDE, DNV-GL, CE, RoHS |
| Clamping Range | 0.709 - 0.984 in. (18.0 - 25.0 mm) |
| Shield Diameter (in) | 0.63 |
| Shield Diameter (mm) | 16 |
| Thread Diameter | 1.575 in. (40 mm) |
| Wrenching Flats | 1.575 in. (40 mm) |
| Thread Length | 0.354 in. (9 mm) |
| Height (in) | 1.496 |
| Height (mm) | 38 |
| Locknut P/N | LME-40 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-2 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
