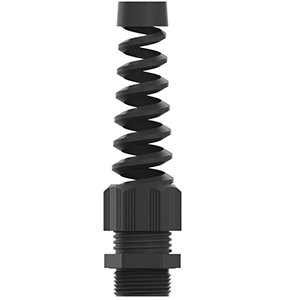

Spiral Cable Glands

Filter Cord Grip Selection

FMB-20R

Print
Thread M20X1.5
Series CG 200 Metric
Description with reducer bushing
Material Polyamide 6
Color Black
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -30°C to +150°C
Protection Class IP 68 - 5 Bar
Flammability V2 (according to UL 94)
Approvals cULus, cCSAus, VDE, DNV-GL, CE
Clamping Range 0.197 - 0.354 in. (5.0 - 9.0 mm)
Thread Diameter 0.787 in (20 mm)
Wrenching Flats 0.945 in (24 mm)
Thread Length 0.394 in (10 mm)
Height (in) 3.661
Torque Values Torque Values for Polyamide Glands
Thread & Hole Sizes Thread Diameters & Holes Sizes
Product Datasheet
Ask about this product
