Plastic Cable Glands

Filter Cord Grip Selection

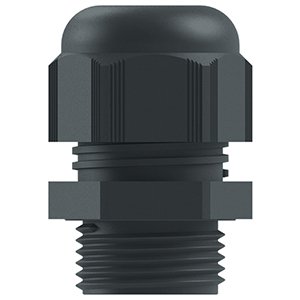

PMB-20RC

Print
Thread M20X1.5
Series CG 100 Metric
Description with reducer bushing
Material Polyamide 6
Color Black
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -30°C to +150°C
Protection Class IP 68 - 5 Bar
Flammability V2 (according to UL 94)
Approvals cURus, cCSAus, VDE, DNV-GL, CE, RoHS
Clamping Range 0.276 - 0.473 in. (7.0 - 12.0 mm)
Thread Diameter 0.787 in (20 mm)
Wrenching Flats 1.063 in (27 mm)
Thread Length 0.394 in (10 mm)
Height (in) 1.22
Torque Values Torque Values for Polyamide Glands
Thread & Hole Sizes Thread Diameters & Holes Sizes
