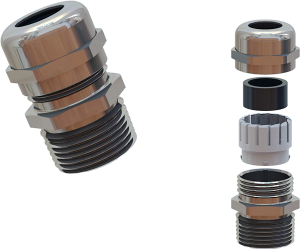

MMS-12L

Print
Category: Metal Cable Glands
Thread M12X1.5
Series CG 300 Metric
Description with longer threads
Material Nickel Plated Brass
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -40°C to +150°C
Protection Class IP 68 - 5 Bar
Flammability V2 (according to UL 94)
Approvals cURus, VDE, DNV-GL, CE
Clamping Range 0.118 - 0.256 in. (3.0 - 6.5 mm)
Thread Diameter 0.472 in. (12 mm)
Wrenching Flats 0.551 in. (14 mm)
Thread Length 0.472 in. (12 mm)
Height (in) 0.846
Height (mm) 21.4884
Torque Values Torque Values for Metal Glands
Thread & Hole Sizes Thread Diameters & Holes Sizes
