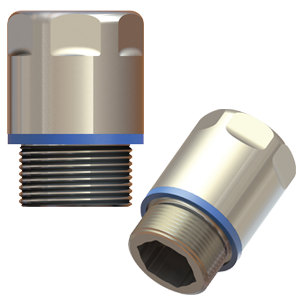

HCGE-16

Print
Category: Hygienic Glands
Type Hygienic Cable Gland
Thread M16x1.5
Series CG Clean Hygienic Cable Gland
Material EMC Nickel Plated Brass
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -40°C to +150°C
Protection Class IP 68 (5 bar, 30 min.) acc. to EN 60529; IP 69; IP 68
Approvals UL, VDE, DNV-GL, NSF, CE
Clamping Range .197 - .394 in. (5.0 - 10.0 mm)
Wrenching Flats 0.709 in (0.709 mm)
Thread Length 0.276 in (7 mm)
Height (mm) 32.5
Outer Ø (mm) 20.2
