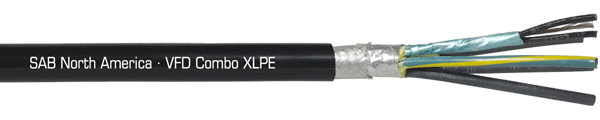

VFD Combo XLPE Tray Cables/VFD Cables

Series Number: 3569


VFD COMBO XLPE is a flexible shielded motor supply cable designed for adjustable speed drives and servo systems. Included is an individually shielded pair for wiring a brake or temperature sensor. The cores are insulated with a thicker cross linked insulation providing better heat resistance, low capacitance and better protection against corona discharge.

VFD Combo XLPE is UL TC-ER, 600V, UL WTTC, UL flexible motor supply cable 1000V, c(UL) CIC/TC, & UL/CSA AWM approved up to 1000V and is 100% shielded with both a foil and braided shield making this cable resistant to Electromagnetic Interference (EMI) from spikes, harmonics, and power distortions frequently associated with variable frequency drives. This cable can be used both indoors and outdoors within or without conduit (exposed runs) up to any length. Its unique flame retardant jacket makes the VFD Combo XLPE approved for both cable tray (TC) applications as well as control and instrumentation applications. VFD Combo XLPE is suitable for installations in wet or dry locations (90°C), is UV resistant, and is rated for direct burial. VFD Combo XLPE is permitted to be used in hazardous (classified) locations Class 1 Division 2 per NEC Article 501.4 (B), and is UL Type WTTC in acc. to UL standard 2277. Wind Turbine power and control cable (WTTC) is intended to be installed in cable trays or raceways within a wind turbine generator.

Get A Quote Download PDF

Cable Accessories Available

Cable Accessories

View Product Line

Outstanding Features

  • Interconnection of variable frequency drive control device to variable frequency motors
  • Shielded pairs for a brake or temperature sensor
  • WTTC: UL subject 2277
  • TC-ER: UL standard 1277
  • UL flexible motor supply cable 1000V
  • crosslinked conductors, better for longer installations
  • Oil Res I & II
  • Double shielded (100% shielded)
  • Rated for UL 90°C wet
  • UL TC-ER-JP (joist pull)
  • Class 1 Div 2 per NEC Article 501.4 (B)

Approvals

  • UL TC-ER
  • UL WTTC
  • CSA CIC-TC
  • CSA AWM
  • CE
  • RoHS
